Aperçu /Produits/Panneau sandwich PU/Industrial Most Popular Decorative Thermal Insulation 50mm Eps Sandwich Panel For Light Villa

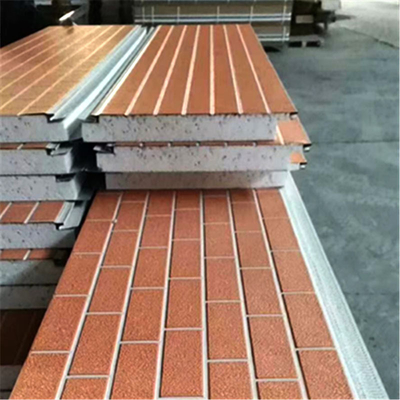

Industrial Most Popular Decorative Thermal Insulation 50mm Eps Sandwich Panel For Light Villa

200 Square Meters
MOQ
$11.00(200 - 999 Square Meters) $10.00(>=1000 Square Meters)
Prix
Industrial Most Popular Decorative Thermal Insulation 50mm Eps Sandwich Panel For Light Villa
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Warranty: 2 years
After-sale Service: Online technical support
Project Solution Capability: graphic design
Application: Workshop, All buildings
Design Style: Industrial
Model Number: HYD-11
Panel Material: Metal
Core material: Hard Polyurethane Foam
Surface material: Alu-Zn Galvanized Sheet
Thickness: 50mm
Advantage: Fireproof+waterproof
Function: Sound-absorbing Weather-proof Insulation
Size: (1500-6000mm)*383cm*50mm
Usage: Heat Insulation
Length: Customers Requested
Width: 38.3cm
Informations de base
Model Number: HYD-11
Conditions de paiement et expédition
Packaging Details: According to your demand.
Supply Ability: 2000 Square Meter/Square Meters per Day Heat Insulation 50mm Sandwich Panel
Description de produit
Product Description
Specification
PU Sandwich Panel
Aluminum and other metal wall panels are a popular choice for interior and exterior commercial use.
These panels are often found on large office buildings or big retail centers. An aluminum wall panel provides a sleek and stylish look, but also provides insulation. A true sandwich structure, an aluminum wall panel most often has a polyurethane foam core,bonded between the aluminum skins and aluminized paper. Attractive, reasonably priced, easy to install and providing insulation,metal wall panels are increasingly being used in new construction.
Surface
0.27 mm Al-zn alloy coated steel sheet (Al 55%, Zn 43%)
Middle
16mm PU foam
Back
Aluminium foil paper
Weight
3.7kgs/sqm
Standard size
L1500mm*W380mm*H16mm(length can be customized)
Waterproof Rate
0.08%
Wind Resistance
8.0-10.0 Kpa
Thermal Conductivity
0.024W/m·k
Thermal Resistance
2.09sqm k/w
Compressive Strength
52.7kpa
Air sound insulation
25dB
Fireproof grade
B1 or B2
Company Profile
Advanced automatic equipment, effectively ensure the quality of products
Hongyuanda PU Sandwich Wall Panel has good heat insulation, sound insulation and noise reduction, light weight, high strength, simple construction, corrosion resistance. Beautiful appearance, can be reused, good weather resistance characteristics. The company's strength, management standards, technology, equipment, scientific management, good service into the market has been praised by all sectors of society. Products used in high-rise buildings, modern villas, light steel workshop, mobile housing, European and american-style box change, the old building's external wall transformation, the scenic area of the mobile and housing, mobile toilet beautiful energy-saving building.
Installation Instructions

First Step

Determine the starting position and the connection position of the board seam according to
the design and the external dimensions of the building.

Second step

According to the requirements of the overall thickness and the thickness of the entire
external insulation system ≤50mm, it is determined that the galvanized keel should be installed according to the position between
the keel and the keel, fixed with expansion bolts, and fixed and tightened.

Third Step

It is very safe and convenient to install and use, suitable for all seasons. This
innovative exterior wall thermal insulation decorative panel highlights its absolute advantages.
Application
