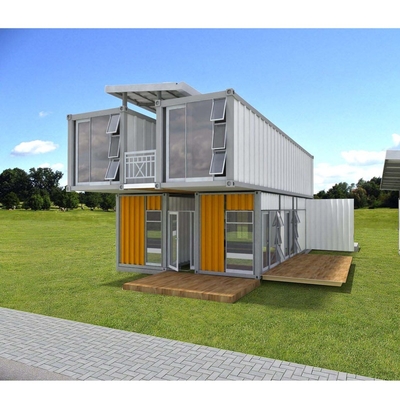

100% Wateproof Lightweight Soundproof Pre Made Quick Install Prefab Steel Structural Shipping Container House Construction

200 Square Meters
MOQ
$79.00(200 - 499 Square Meters) $59.00(500 - 999 Square Meters) $39.00(1000 - 1999 Square Meters) $29.00(>=2000 Square Meters)
Prix
100% Wateproof Lightweight Soundproof Pre Made Quick Install Prefab Steel Structural Shipping Container House Construction
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Warranty: More than 5 years
After-sale Service: Online technical support, Onsite Installation, Onsite Training
Project Solution Capability: 3D model design, total solution for projects
Application: Bedroom
Use: Carport, Hotel, House, Shop
Product Type: Container Houses
Design Style: Modern
Product name: Container House
Window: PVC Sliding Window
Main structure: Galvanized Light Steel Frames
Standard size: 5965mm*3000mm*2800mm
Wall: 50/75/100mm Thickness
Feature: 100% Lightweight Wateproof Soundproof
Structure: Wall + Steel Structure
Type: Light Steel Structure Frame
Roof: Steel Roofing
Frame: 3mm Hot Galvanized Steel
Informations de base
Conditions de paiement et expédition
Packaging Details: China Warehouse Professional Manufacturer: naked loaded in shipping container or as your requests ; the specifications of shipping container have 20GP,40GP,40HP,40OT
Supply Ability: 60000 Square Meter/Square Meters per Month pre-fab steel structure warehouse
Description de produit
Product Category
Steel Structure Warehouse
Steel Structure Workshop
Chicken Poultry House
Multi-floor Building
Steel Structure Hangar
Prefabricated House

China Cheap Prefab Homes Construction Prefabricated Portable Container Site Shed House

Director Group steel structure container househas features of high fire resistance, strong corrosion resistance. Steel structure warehouse is mainly refers to the main bearing component is composed of steel. Including the steel columns, steel beam, steel structure, steel roof truss.Each component using welds, bolts or rivets to connect.

The roof and wall can be made of composite panel or veneer. Galvanized sheet metal can prevent rust and corrosion. The use of self-tapping screw can make the connection between the plates more closely, to prevent leakage. You can also use composite panel for roof and wall. The sandwich is polystyrene, glass fiber, rock wool, polyurethane. They have good thermal insulation, heat insulation, fire-retardant. The wall of the steel structure maintenance also can use brick wall. The cost of a brick wall is higher than galvanized steel roof and wall.

The usage scale includes large-scale workshop, or warehouse, supermarkets, entertainment centers and modular steel structure garage.

Product Description

2. Specification

No. Component Description
1 Main Steel Structure 2.5~3.0mm Galvanized Steel Structure,C Steel,Square Tube,Angle Iron,Flat Tube, Round Tube
2 Roof Tile PU or EPS Tile
3 External Wall Panel 50-250mm EPS,PU,Rockwool or EPS Cement with Two-sides Color Steel Sandwich Panel
4 Door Color Steel Sandwich Panel Door
5 Window PVC Sliding Window
6 Flooring Plywood or PVC
7 Celling PVC or Gypsum Board
Technical Paremeter
No. Description Specification
1 Bearing Load 150kg/square meters
2 Wind Pressure 0.45KN/square meters Equal 10 Grade
3 Earthquake Resistance 7 Grade
4 Temperature Resistance (-25°C) to 50 °C
5 Life Span More Than 12 years
Product Show

Main Material

H-Shaped Steel

The advantages of our products:

high-performance thermal

insulation, ventilation,

moisture-proof materials

provide extremely high

living comforts.

C-Shaped Steel

The advantages of this approach is

durable life long, the production of

high degree of industrialization,

quality and stability. So heavily

used by atmospheric corrosion

is serious and difficult

maintenance of outdoor steel

structure.

Sandwich Panel

Sandwich panel is suitable for prejects with high fireproof requirement. With good sound-proof effect.In addition, noise indoor caused by rain and hail are weakened obviously after sandwich used.

Steel frame structure consists of beams and columns from welded H-shapede steel, hot rolled H-shaped steel. In this frames, the beam and column system takes the gravity load such as dead and live loads..

Company Information

ABOUT US

Qingdao Director Steel Structure Co., Ltd. is a China based manufacturer of steel structure building, prefabricated house and related steel products.

Factory established in 1997

Area of the factory: 40000 square meter

Workshop area: 20000 square meter

Production lines:

5 lines for H section steel

3 lines for steel purlin

3 lines for corrugated color steel

3 lines for sandwich panel

VIEW MORE>>

China Cheap Prefab Homes Construction Prefabricated Portable Container Site Shed House

FAQ
Q

You are a manufacturing factory or trading company?

A

We are the manufacture factory. And you are welcomed to visit us for inspection. The quality control flow will show you our professionalism. Also, you will enjoy the best quality and competitive price.

Q

What's the quality assurance you provided and how do you control quality?

A

Established a procedure to check products at all stages of the manufacturing process - raw materials, in-process materials, validated or tested materials, finished goods, etc. Third-party testing is available for us. We could deal with you by Trade Assurance via Alibaba.

Q

Can you offer a designing service?

A

Yes, we have more than 10 design engineers. We could design full solution drawings as per your requirements. They use software: Auto CAD,PKPM, MTS, 3D3S, Tarch, Tekla Structures(Xsteel)V12.0.etc.

Q

Do you offer guiding installation on-site overseas?

A

Yes, usually we will send you the detailed installation drawing, if you need it, we can provide the service of installation, supervision, and training by extra. We can send our professional technical engineer to supervise installation on site overseas.
