Caractéristiques

Warranty: 1 Year

After-sale Service: Online technical support, Onsite Training, Onsite Inspection

Project Solution Capability: graphic design, 3D model design, total solution for projects

Application: Home Office

Use: Hotel, House, Office, Sentry Box,Guard House, Toilet, Villa, Warehouse, Workshop,Plant

Product Type: Container Houses

Design Style: Modern

Product name: OHC Falt Pack Container House System

Keyword: Moduler Homes

Type: Luxury Flat Pack Container House

Material: Sandwich Panel+steel

Structure: Galvanized Steel Structure

Window: PVC Sliding Window

Standard Size: 2ft/40ft

Advantage: Environmental Protection Low Cost Recycle

Life Span: 15-20years

Informations de base

Conditions de paiement et expédition

Packaging Details: Export seaborne standard package

Supply Ability: 800 Set/Sets per Month

Description de produit

Products Description

Interior Wall

Ceiling

Rain Pipe

Electrical Fitting

Kitchen

Sanitary

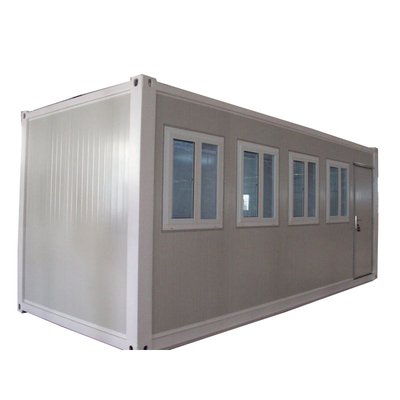

Luxury Flat Pack Container House

Integrate with OHC Systems

Choose OHC structural, roof, and wall systems for flat pack type of container house. This integration helps you achieve both the aesthetic look you want and the functionality you need for your buildings.

Build Quickly

Occupy your building sooner. The OHC flat pack container house can be assembled within 60 minutes, up
to 30% faster than conventional prefab houses or detachable container houses in the market.

Independent Package

All in one independent package for each unit container house. The roof module and the floor module are both welded, punched and assembled in factory. The installation on site will be speedier.

Safe and Durable

All the materials we use are high quality. The roof frame and floor frame are both welded not bolted.
It all comes 30 years long-term performance and ensure building reliability over time.

Advantages

1. Safe and durable
2. Easy assembly and disassembly
3. High performance
4. Environment friendly
5. All on one independent package

Product Specification

Dimensions
LWH (mm)	605524352896 (indoor size 584522252590) or 600030002800 (indoor size 582028202600) or customized
Roof slope	Flat slope
Rain gutter	UPVC pipes inside 4 posts, steel gutter section size 40mm*80mm
Storeys	One, two or three storeys
Design Parameter
Structure lifetime	20 Years
Floor live load	2.0 KN/m²
Roof live load	0.5 KN/m²
Wind load	0.6 KN/m²
Seismic intensity	8 Degree
Structural System
Main roof beam	180*3.0mm beam size, SGC440 cold rolled galvanized structural steel
Secondary roof beam	C1004012*2.0mm size = 9 pcs, SGC440 cold formed galvanized C profile steel
Main wall beam	160*3.5mm beam size, SGC440 cold rolled galvanized structural steel
Secondary wall beam	C1205012*2.0mm size = 12 pcs, SGC440 cold formed π-shaped steel
Corner post	2101503.5mm post size, SGC440 cold rolled galvanized structural steel
Coating	Electrostatic powder spraying, over 100 μm film thickness
Roof System
Metal roofing	0.5mm PPGI 360º standing seam roof, physical waterproof, white grey color
Thermal insulation	100mm glass wool roll, aluminum foil sheet covered on one side, density≥14kg/m3, non-combustible / A1 fire classification
Ceiling panel	0.5mm PPGI sheet, type V-193, with hidden fastener, white grey color
Wall System
Wall sandwich panel	75mm rock wool sandwich panel, 0.5mm Z120g PPGI two-sided facings, ivory white color, S-shaped panel joint prevent hot and cold bridge effect
Thermal insulation	75mm rock wool core, density≥110kg/m3, non-combustible / A1 fire classification
Floor System
Decorative floor	2.0mm PVC floor, light grey color, T abrasion resistance classification, volume loss FV≤2.0
Basal plate	19mm fiber cement board, density≥1.3g/cm3
Thermal insulation	100mm glass wool roll, aluminum foil sheet covered on one side, density≥14kg/m3, non-combustible / A1 fire classification
Damp-proof course	Damp-proof plastic film
Bottom cover plate	0.5mm Zinc aluminized sheet
Door
Size (mm)	WidthHeight=8402035
Material	Steel shutter door, electrostatic powder spraying, 0.8mm PPGI door facing, 1.5mm PPGI door frame, PU foam insulation, density≥25kg/m3, EPDM rubber and embedded seal strip, stainless steel hinges, press handle type lock
Window
Size (mm)	WidthHeight=8001100, front window and rear window (standard equipped)
Material	plastic steel frame, 80 series, durglar bars, window screens
Glass	4mm+9A+4mm insulating glass
Electrical System
Voltage	220V Office / 36V Dormitory
Electrical wire	6.0mm2 Entry wire, 4.0mm2 Floor mounted AC wire, 2.5mm2 Wall mounted AC and socket wire, 1.5mm2 lighting switch wire, PVC conduit built in wall panels
Breaker	High efficiency mini breaker
Lighting	2 sets 30W LED fluorescent tube light
Socket and switch	4 pcs 10A five-hole sockets, 1 pc 16A three-hole AC socket, 1 pc 10A socket, 1 pc 10A duplex switch,
Interior trims
Ceiling & column trims	0.6mm PPGI bended trim parts, white grey color
Skirting	0.6mm PPGI skirting, white grey color

Other Options

Flat Pack Container House

Detachable Container House

Folding Container House

Expandable Container House

Push Out Container House

Shipping Container House

Tapy K Modular Housse

Tapy A Modular Housse

Light Steel Villa

Application

Packaging And Shipping

Company Strength

Frequently Asked Questions

1. Do you provide on-site installation service?
1) Only large projects provide installation services
2) General projects, we can provide Installation guide service based on customers' request.
3) Installation supervision charge standard: 150USD/day, customer should responsible for the travel fee, accommodation,
translation fee, and ensure staff's health and safety.

2.What's your delivery time?

Salesman will confirm the time accordingly, large order should communicate with order management department in advance. Normally,
delivery time is 15 days after receive deposit. Large order delivery time should be arranged separately.
3.How to control the quality of your product?
a. quality of the design: think about possible problems in advance and provide a high-quality design solution.
b. quality of the raw material: choose the qualified raw material
c. quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.

4. How to deal with quality problems?
Warranty is 2 years. Within the warranty period, OHC will responsible for all quality problems caused by production.

5. If there is a clear service life of your products? If have, how long?
Under conventional climate and environment, the service life of container house steel frame is 20 years

6. What designs do you have in different climates (How can the products adopt to different climates)?
Strong wind region: improve the wind-resisting ability of the internal structure. Cold region: increase the thickness of the wall,or use good insulation material, improve anti-pressure ability of the structure. High corrosion region: use corrosion resistant material, or paint anticorrosive coating.
