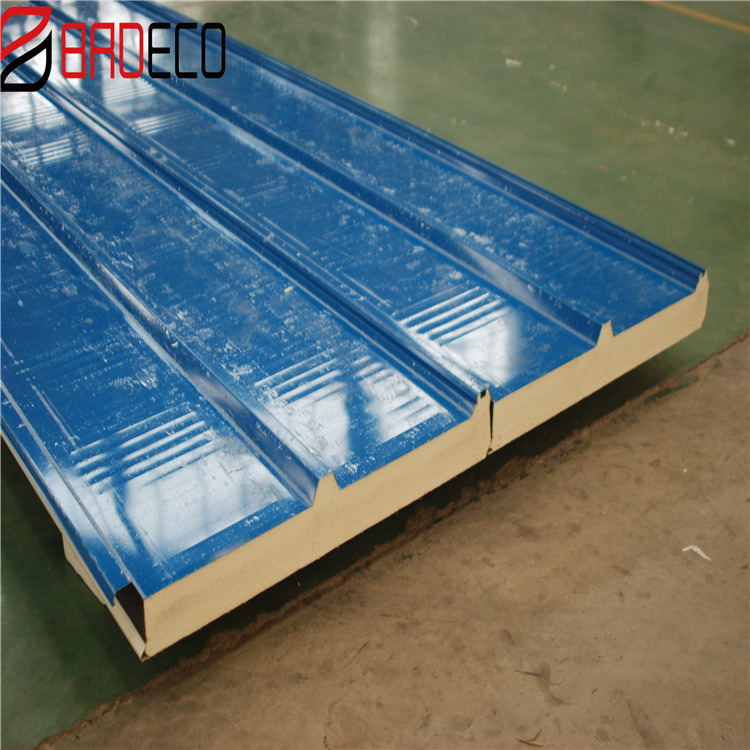

Modern Easy Install Insulated PU Sandwich Roof Panels For Sheds

100.0 square meters
MOQ
Modern Easy Install Insulated PU Sandwich Roof Panels For Sheds
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Warranty: More than 5 years
After-sale Service: Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
Project Solution Capability: graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
Application: Office Building, Warehouse/Hospital
Design Style: Modern
Model Number: Roof Panel
Panel Material: Metal
Product name: Easy Install Insulated PU Sandwich Roof Panels For Sheds
Steel thickness: 0.4-0.7mm
Thickness: 50/75/100mm
Length: Customer's Choice(1-11.8m)
Color: Customized
Material: Color Steel Sheet
Core material: Hard Polyurethane Foam
Advantage: Soundproof/Fireproof
Usage: Construction Insulation
Informations de base
Model Number: Roof Panel
Conditions de paiement et expédition
Packaging Details: Nude packed in container, and be fixed by plastic packing belt. We also can follow your own requirement about package .
Supply Ability: 90000 Square Meter/Square Meters per Month
Description de produit
Technical Parameters

As a new material in structure, the polyurethane roof panel has been the most suitable choice for many users. The polyurethane roof panel is divided into two types: The three waves of polyurethane composite roof panel, The four waves of polyurethane composite roof panel. The characters of PU roof panel are heat insulation, waterproof, soundproof, and easy to install. The excellent function is the reason that so many people choice it as roof board.

PU sandwich roof panel

Item

Specifications

Upper plate thickness

0.4 -0.7mm

Bottom Plate Thickness

0.4 -0.7mm

Sandwich Panel Thickness

50 mm,75mm,100mm

Plastic Film Thickness

0.06-0.08mm

Density

40 kg/m³

Fireproof grade

B

Color

 Any RAL color

Height of wave

 40mm

Effective width

 1m

Length

 1-11.8m
Advantages



1. Created exclusively 4 wave roof panel in China for the first time, more powerful for snow load.



2. Exclusively adopt the 3 wave roof, embedded installation, dark nail waterproof technology, easy installation, guarantee 100% hold water.



3.Adopt the 40 cm peaks, increase the surface strength, easy drainage, reducing both snow load and wind load by 170%.



4.Super flame retardation

The coefficient of thermal conductivity is 0.023w/(m•k), which ensures better thermal insulation efficiency. In practice, this effectively keeps the building absorbing heat and brings enormous economic benefits.


5. Easy and quick installation

Compared with traditional thermal insulation methods, BRD use less material while the installation process is less time-consuming and labor-demanding leading to lower building costs.





Installation Process





1, First of all, it must carry on the construction preparation before installation, include personnel, materials, etc. All will be well prepared.

2, Before the installation of polyurethane wall panel, it should check whether the verticality and levelness of metope purlin installation requirements, wall frame column vertical degree meets the requirement.

3, Before installation polyurethane wall panel, it should first mounting plate bottom water retaining plate and the bottom of the window to block water board, water retaining plate and wall frame beam connection with self tapping screw fixation.

4, Polyurethane wall panel links with ground.

Lateral links: fixed polyurethane sandwich panel with the ground at the other end of the round hole with steel frame fixed, connection between the two plate mouth involution, if occurrence crack of the connectors available heat preservation to fill.
Vertical links: the gap between plates, using the dedicated button concave groove in the fixed polyurethane wall panel.


Sales net



The sales net is targeted at those countries and places where are eager for sandwich panels. Till now, BRD sandwich panels have been exported to over 21 countries and places and more and more customers have made twice or third order, which proves BRD is worth of your reliance.









Company Profile



 BRD Group, was established in 1995, we have more than 500 existing staffs in the company, and have more than 30 million square meters production area. BRD Group is a modern enterprise which focusing on full systems of steel building, such as steel structure, pu sandwich panel, thermal insulation and decorative panel, steel truss deck, and light steel villa.

BRD also has a strong productivity. We introduced several Italian totally automatic production lines and adopted Chinese Total Productive Management System. The annual output includes 1.2 million meters of polyurethane sandwich panel, and 10 million tons of steel structure. We take part in many famous exhibitions, like Canton Fair, Thailand ASEAN International Exhibition, and so on. We sincerely hope to cooperate with you to create a double win situation.





In the past 21 years, BRD committed is to creating high-quality products, internal, external finishes of solutions, to provide customers with high quality, safe, environmentally friendly building materials solutions, to meet all your needs from product design, technology, sales and construction.



Our team continues to improve the standards themselves, and we have to build a first-class quality, first-class benefits, first-class modern enterprise management as the goal, We are committed to the development of new energy-saving products, with independent intellectual property patents production technology, the introduction of German technology imported main material adhering to the "committed to being respected and have capacity for sustainable development of enterprises" for enterprise vision. Adhere to the "promotion of industrial innovation and circulation of the intensive use of social resources" for enterprise mission, continuous innovation, promote the building decoration industry to a green, low carbon, health, environmental protection, energy saving direction.
