Aperçu /Produits/Unité de salle de bains préfabriquée/Factory Price High Tech Modern Good Impact Resistance House Bathroom Prefab Kitchen

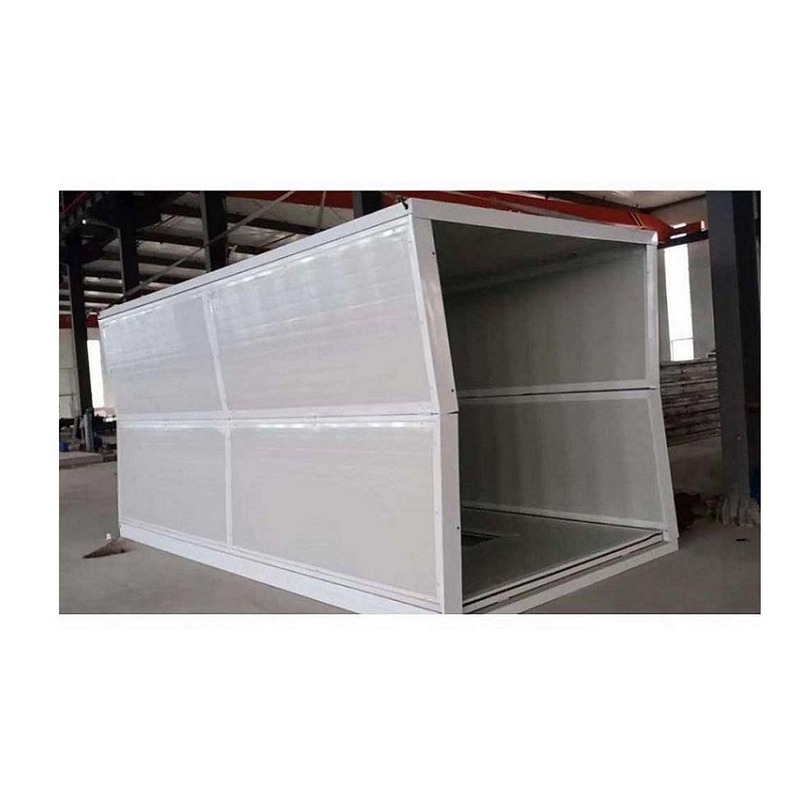

Factory Price High Tech Modern Good Impact Resistance House Bathroom Prefab Kitchen

1 piece
MOQ
Factory Price High Tech Modern Good Impact Resistance House Bathroom Prefab Kitchen
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Warranty: 1 Year
After-sale Service: Other
Project Solution Capability: Others
Application: Hotel
Product Type: Container Houses
Design Style: Modern
External dimension (mm): 5800*2480*2520
Folded state (mm): 410
Net weight: kg: 1200
External roof: T0.5mm color steel plate
Internal ceiling: T0.25mm color steel plate
Heat shield: T50mm glass wool
Frame structure: T1.5mm profile
Hanging head: T10mm steel plate
Structure: bottom side rail,end side will,beam,floor
1 outer door: Steel frame
Informations de base
Conditions de paiement et expédition
Supply Ability: 1 Piece/Pieces per Week
Description de produit

Advantage：

1. Convenient transportation, more suitable for operating units that replace construction sites. 2. The temporary construction house on the construction site is fixed and durable, made of steel, stable and fixed, and has good impact resistance. It has relatively good anti-deformation ability, good sealing performance and strict manufacturing process, which makes the mobile house Has good water tightness. 3. Use the characteristics of personalized creation to develop personalized art. Make it personalized, in line with personal characteristics and pursuit beg. 4. Based on the standard steel bottom, the mobile room can derive many combined spaces. Such as meeting rooms, dormitories, kitchens Room, toilet, etc. 5. Convenient disassembly and assembly, better performance and light weight. The house is an integral structure with a frame inside and steel walls Board wall. It can complete the overall movement with wooden boards. The service life can reach more than 20 years.
Plastic steel window
Frame 920 * 900x2 fan
Folding hinge
13mm hinge
electrical system
Electrical wiring shall be installed in strict accordance with moisture-proof specifications. All electrical products shall comply
with CE certification and support EU certification
technical guidance
Voltage 220V, 50Hz
Circuit composition
Connect the circuit according to the circuit engineering specification, indoor: wall socket, lamp switch: incandescent lamp 60W,
cable D24, socket distribution, ceiling 60A, air switch, 2-hole socket 3 * 10A
remarks:
1. Floor - Grey
2. Door handle, if provided with picture size
3. Lamp - general lighting bulb 15W
4. Sockets - as provided link and list
5. Self tapping screws shall be galvanized. When penetrating the inner wall, the cut-off part shall be repainted. The plastic
spraying of the frame shall be uniform as a whole without missing spraying
6. The edge sealing of all folding parts shall be sealed with structural glue to prevent water from penetrating into the board
from the edge wrapping.
Tangshan Wancheng color steel Co., Ltd. is a company specializing in the production of residential container houses and light steel structure movable houses It is a diversified enterprise integrating columns, steel structures, prefabricated houses and modular houses. The company is located in Fengrun Industrial Park, Tangshan. The factory covers a total area of 60000 square meters. The production line has box room welding Spraying workshop, container (accessories), packing box (accessories), steel structure, automatic cutting equipment and various processing, etc High end equipment to meet different customer needs. Adhering to the business philosophy of survival by quality and development by reputation, the company strictly controls quality, service and reputation Keep improving and strive for innovation to provide our customers with higher quality assurance. Tangshan Wancheng color steel Co., Ltd. is willing to cooperate with our customers for common development and create brilliance!
