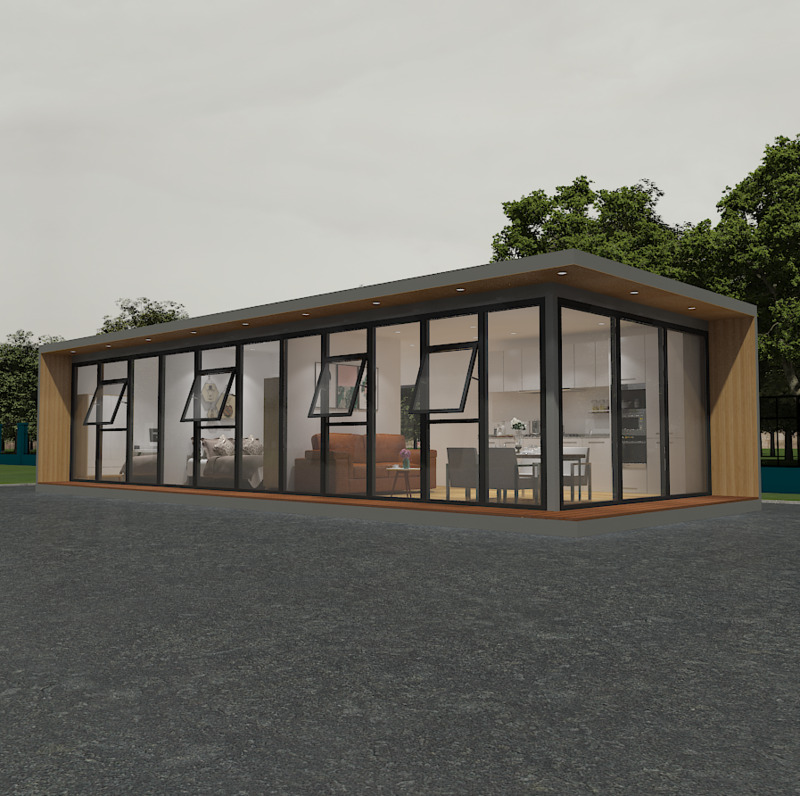

Modern Luxury Movable Steel Structure Prefab Quick Assembly Modular Home Container Living House

5 Sets
MOQ
Modern Luxury Movable Steel Structure Prefab Quick Assembly Modular Home Container Living House
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Warranty: 1 Year
After-sale Service: Online technical support
Project Solution Capability: graphic design
Application: Apartment, Accommodation
Model Number: JZXF210630
Use: Carport, House, Kiosk,Booth, Shop
Product Type: Container Houses
Design Style: Modern
Product name: Living Container House
Material: Sandwich Panel+steel
Life Span: 15-25 Years
Informations de base
Model Number: JZXF210630
Conditions de paiement et expédition
Packaging Details: Paper Leather + Bubble Cotton + Transport Frame
Supply Ability: 20 Piece/Pieces per Month
Description de produit
Product Description
Parts
Part Name
Standard material
Optional
Top frame system
Upper corner piece
3.5mm upper corner piece, zinc plating amount 80g/㎡ 210*150*210mm
no
Main beam of roof (long)
3.0mm galvanized forming beam, zinc plating amount 80g/㎡, width: 170mm, length: 5633mm
2.0mm-3.0mm
Roof main beam (short)
3.0mm galvanized forming beam, galvanizing amount 80g/㎡, width: 170mm, length: 2688mm
2.0mm-3.0mm
Roof roof
75mm glass wool + tin foil paper, 14kg/m³
0.4mm-0.6mm
Roof insulation
C-shaped steel 90*1.3mm, square tube 20*20*1.0mm, galvanizing amount 80g/㎡
100mm
Roof secondary beam
0.4mm, 831 color steel integrated ceiling board, laminated
Negotiable
Ceiling board
Electrostatic spraying (white)
0.4mm-0.6mm
Surface treatment
3.5mm upper corner piece, galvanizing amount 80g/㎡ 210*150*160mm
Color can be customized
Low frame system
Lower corner pieces
3.0mm galvanized forming beam, zinc plating amount 80g/㎡, width: 160mm, length: 5633mm
no
Ground main beam (long)
3.0mm galvanized forming beam, galvanizing amount 80g/㎡, width: 160mm, length: 2688mm
2.0mm-3.0mm
Ground main beam (short)
1.6mm floor leather
2.0mm-3.0mm
Floor paving
1.0mm waterproof membrane
1.0mm floor leather, 1.6 plastic floor, 2.0 plastic floor, wooden floor
Waterproof membrane
18mm cement modified board
no
ground
75mm glass wool + tin foil paper, 14kg/m³
15mm cement modified board, 18mm cement fiber board, 15mm multilayer board
Ground insulation
75mm glass wool + tin foil paper, 14kg/m³
100mm
Roof secondary beam
3.0mm galvanized column, zinc plating amount 80g/㎡ 210mm*150mm, height 2520mm
Negotiable
Back cover color steel plate
Ø50mm, white PVC
0.4mm-0.6mm
Surface treatment
75mm color steel rock wool sandwich panel, 0.4mm/0.4mm, bulk density 50kg/m³
Color can be customized
Wall system
Prism
3.0mm galvanized column, zinc plating amount 80g/㎡ 210mm*150mm, height 2520mm
2.0mm-3.0mm
Drain pipe
Ø50mm, white PVC
no
Wall panel
75mm color steel rock wool sandwich panel, 0.4mm/0.4mm, bulk density 50kg/m³
50mm/100mm, 0.4mm-0.6mm, 50kg-120kg/m³
High-equipped anti-theft door
840mm*2035mm, made of steel
970mm*1970mm, equipped with anti-theft door
High-equipped anti-theft window
1130mm*1130mm, double glass double push
925mm*1130mm, single glass single push plastic steel window
Successful Case
Company Profile
Certification
FAQ


1. How to heat the container? The top and surroundings of the container are made of heat-insulating color tile panels, which have good heat insulation can. 2. Will water enter the product outdoors? The top of the container house has a water guiding design, and there is basically no water accumulation on the top. The color tile panels on the side walls The contact position with the steel frame needs to be waterproofed with glass glue 3. How long can the product be used and how long is its service life? Container products generally have a service life of about 15-20 years, and the local climate environment is not At the same time, it will affect the service life 4. How about the seismic resistance of the product? The seismic capacity of container products is generally 7-8 earthquake resistance 5. Do container houses need crane installation? It is not necessary to use a crane for installation, depending on the type, if it is an unfolding or folding type Containers generally use cranes, and others can be solved by hoisting 6. What are the key points of the rainproof location? Generally, pay attention to the joints where the color tile plate and the steel structure are in contact with the appearance of rain and waterproof. Position, the folding hinge position should be paid attention to, and the expanded corner position should be paid attention to the expansion type 7. How about the wind resistance of the product? Wind resistance of container products: wind speed ≤120km/h 8. What is the general construction period of container products? The general production cycle of container products is 15-20 days 9. Will the container product window be equipped with an anti-theft net? Conventional products are not equipped with window anti-theft nets, and anti-theft net accessories can be added 10. Is there an installation manual for this product? There are installation instructions, and we will also provide short installation videos for customers to learn about installation
